Description

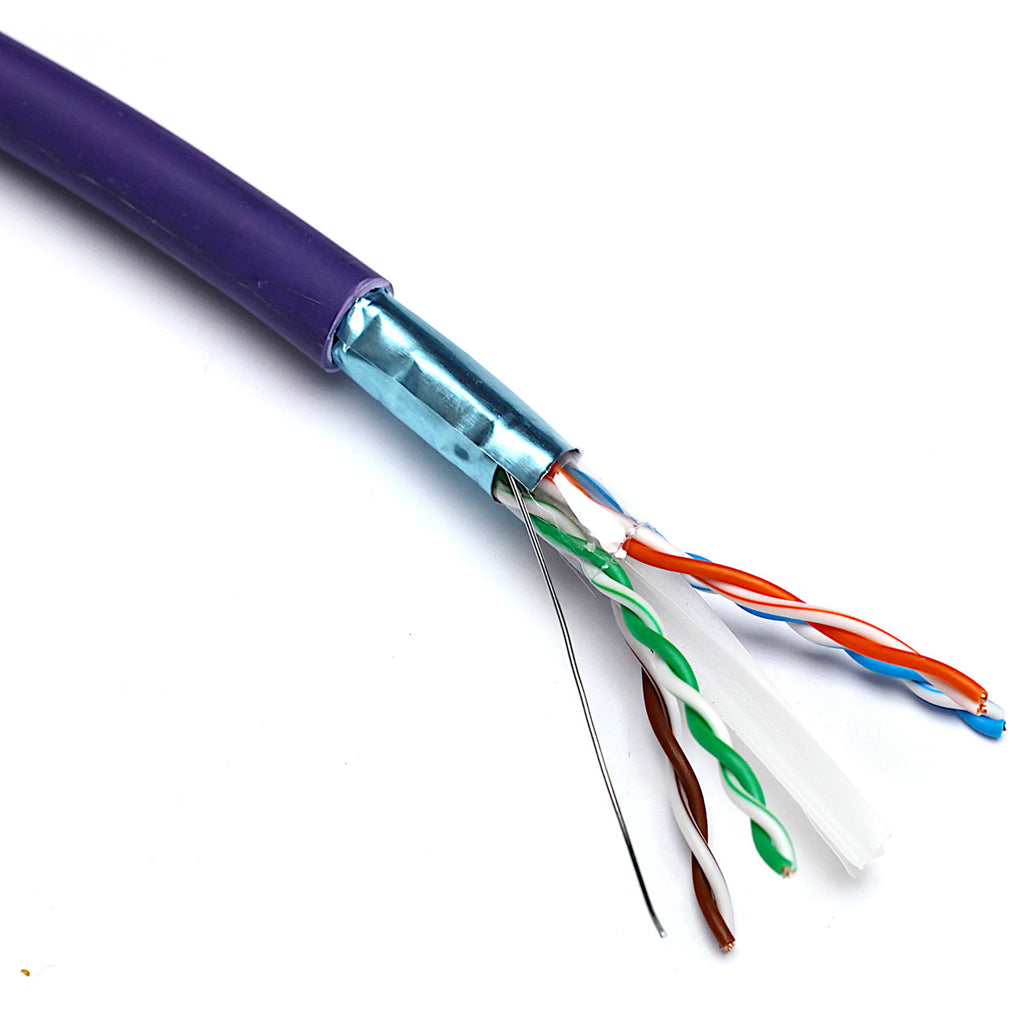

This shielded Cat6 cable from Excel features a low smoke zero halogen outer jacket, rated to CPR Euroclass Dca*.
Each cable meets the Category 6 standards and consists of eight colour-coded solid copper conductors twisted together to form four pairs, formed around a central x-shaped PE centre.
*Note: 1000M reel variant is Euroclass Eca Rated.
Specification
| Conductor surface | Bare |
| AWG size | 23 |
| Conductor category | Class 1 = solid |
| Total number of cores | 8 |
| Stranding element | Pairs |
| Specification core insulation | PE |
| Core identification | Colour |
| Overall screening | Foil |
| Conductor screening | None |
| Outer sheath material | Copolymer, thermoplastic (LS0H) |
| Outer sheath colour | Violet / Light Green |
| Reaction-to-fire class according to EN 13501-6 | Dca (Except 1000m Eca) |
| Smoke development class according to EN 13501-6 | s2 |
| Euro class flaming droplets/particles according to EN 13501-6 | d2 |
| Euro class acidity according to EN 13501-6 | a1 |
| Halogen free (acc. EN 60754-1/2) | yes |
| Flame retardant | In accordance with EN 60332-1-2 and EN 50399 |
| Low smoke (acc. BS EN 61034-2) | Yes |
| Outer diameter approx. | 7.2 mm |
| Installation Temperature Range | 0 - 50C |
| Operating Temperature Range | -10 - 60C |
| NVP Value | 72% |
| Manufacturer Part Codes | 100-076-305M-GN, 100-076/LTGN-500, 100-076, 100-076-1000-ECA |
